| Item |
Specification |
| Model |

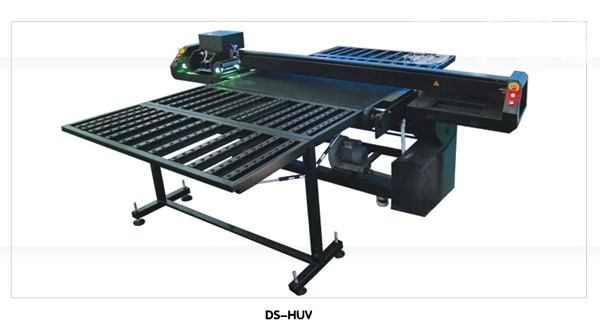

DSH-UV |
| Print head |
KONICA 14PL UV HEAD (WITH HEATING) |
| Number of Printhead |
4 |
5 |
6 |
8 |
| Maximum Print Width |
1.6M/2.5M |
| Color |
CMYK |
CMYK+WHITE |
CMYK Lc Lm |
DOUBLE CMYK |
| Media |
KT BOARD,PVC BOARD,GLASS,WOOD ETC. |
| Maximum Print quality |
720dpi |
| Auto Cleaning System |
NEGATIVE Pressure Cleaning |
| Spray in Idel Function |
| Image Format |
Bitmap, TIFF, Quark Xpress, JPGEG, AI, EPS, PDF |
| Color Management |
Superior ICC Profile |
| Work Flow |
RIP and Print at the same time/Print after RIP |
| Print Interface |
PCI CARD&USB |
| Ink Type |
UV Ink |
| Software |
Photo Print version 10.0 |
| Work Station |
Microsoft Windows 2000 or Windows XP |
| Operating Environment |
220V~(+10%)>15A,50Hz/60Hz |
|
|
|
|
|
|
