| Item |
Specification |
| Model |

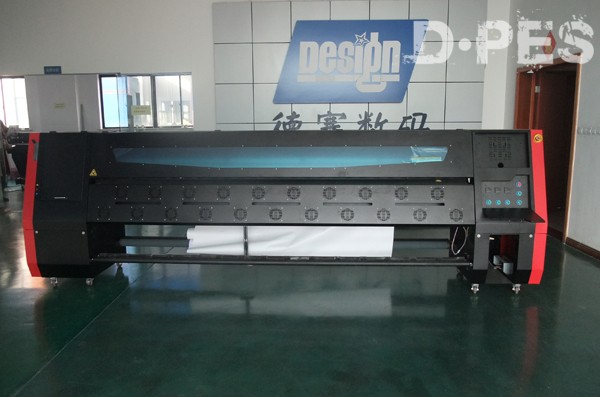

DS-K |
| Print head |
KONICA 512 14PL/42PL |
| Number of Printhead |
4 |
6 |
8 |
| Maximum Print Width |
3.2M (1.8M optional) |
|
Print Speed
(180dpi)
|
HIGH SPEED |
44sqm/hr |
|
88 sqm/hr |
| MIDDLE SPEED |
37sqm/hr |
|
74 sqm/hr |
| LOW SPEED |
29.7sqm/hr |
|
60 sqm/hr |
| Color |
CMYK |
CMYK Lc Lm |
CMYK |
| Media |
Paper, Advertising Banner, PVC, Mesh Fabrics, Vinyl.ETC |
| Maximum Print quality |
720dpi (Theory to 1440dpi) |
| Auto Media System |
Feeding in system &Take-up system |
| Auto Cleaning System |
Positive Pressure Cleaning |
| Spray in Idel Function |
| Image Format |
Bitmap, TIFF, Quark Xpress, JPGEG, AI, EPS, PDF |
| Color Management |
Superior ICC Profile |
| Work Flow |
RIP and Print at the same time/Print after RIP |
| Print Interface |
USB |
| Ink Type |
Solvent Ink |
| Software |
Photo Print version 10.0 |
| Work Station |
Microsoft Windows 2000 or Windows XP |
| Operating Environment |
220V~(+10%)>15A,50Hz/60Hz |
| Wooden Case Dimension |
L*W*H: 5.00*0.75*1.12M
(20feet container can load max 4printers)
|
